MAX25431ATGA/VY+

Symbol Micros: UIMAX25431atga/vy

379086

UIMAX25431atga/vy

Contractor Symbol:

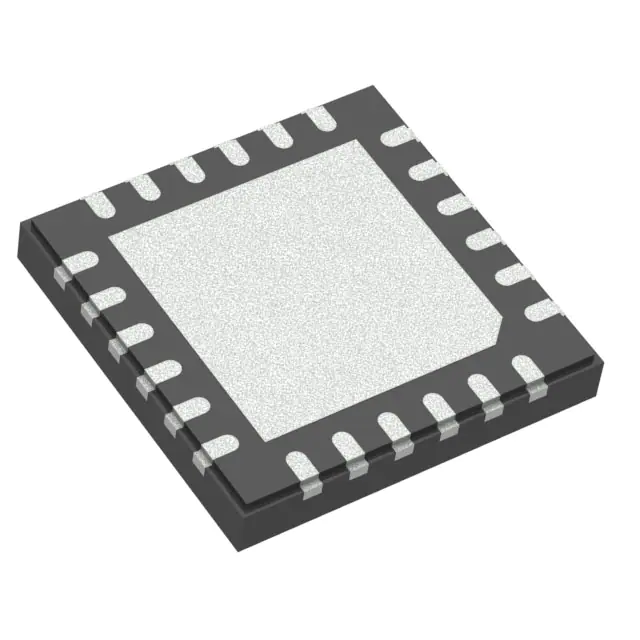

Case : TQFN-SW24(4x4)

Datasheet

Technical drawing Add to favourites

H-Bridge Buck-Boost Controller, Vin 6÷36V, Vout 5V / 3÷25V, 2.2MHz, -40÷125°C MAX25431ATGA/VY+T

Parameters

Case:	TQFN-SW24(4x4)
Dimensions:	4x4x0.75mm
Input voltage range:	6 ~ 36V
Integrated circuit type:	Switching regulator
Manufacturer:	Maxim Integrated
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: Maxim Manufacturer part number: MAX25431ATGA/VY+ RoHS Case style: TQFN-SW24(4x4)

In stock:

8 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,8058	2,3194	2,0327	1,8927	1,8101

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Case:	TQFN-SW24(4x4)
Dimensions:	4x4x0.75mm
Input voltage range:	6 ~ 36V
Integrated circuit type:	Switching regulator
Manufacturer:	Maxim Integrated
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
