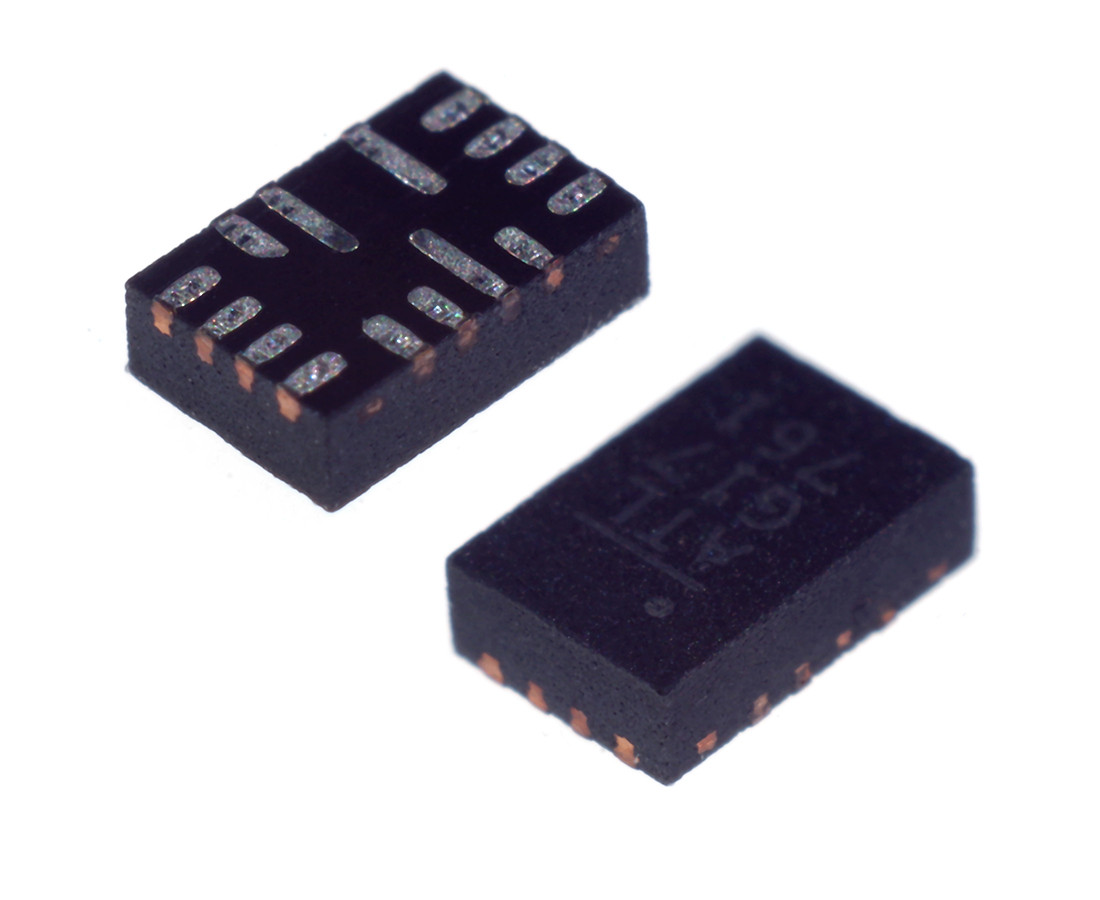

MP2263GD-Z

Symbol Micros: UIMP2263gd

271455

UIMP2263gd

Contractor Symbol:

Case : QFN15(3x2)

Datasheet

Add to favourites

Synchronous Step-Down Switching Regulator, 3A, Vin 3.3÷30V, Vout ADJ, 0.35÷2.5MHz MP2263GD-P

Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	3.3V ~ 30V
Mounting:	SMD
Case:	QFN15(3x2)
Dimensions:	3.0x2.0x1.0mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: MPS Monolithic Power Systems Manufacturer part number: MP2263GD-Z RoHS Case style: QFN15(3x2) Datasheet

In stock:

24 pcs.

Quantity of pcs.	1+	5+	25+	100+	300+
Net price (EUR)	1,8431	1,4641	1,3088	1,2523	1,2287

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	3.3V ~ 30V
Mounting:	SMD
Case:	QFN15(3x2)
Dimensions:	3.0x2.0x1.0mm
Operating temperature (range):	-40°C ~ 125°C
