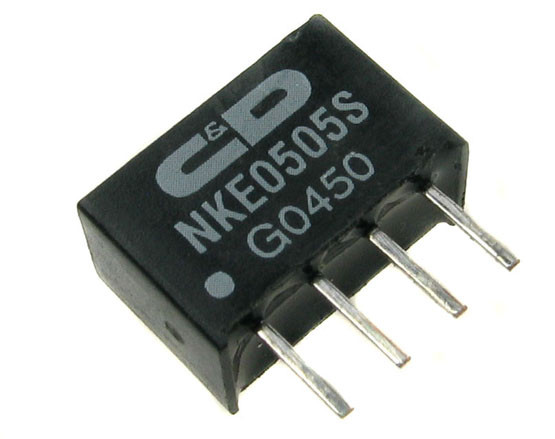

NKE0505SC

Symbol Micros: UINKE0505s

12628

UINKE0505s

Contractor Symbol:

Case : Rys.AM1SxxxxS

Datasheet

Technical drawing Add to favourites

DC-DC Converter; Isolated; Regulated; Single Output; 1W; 200mA; 5V; 3kV; 4,5V~5,5V; -40°C~85°C; EFF 69%; Odpowiednik: AM1SS-0505S-NZ; NKE0505SC; NN1-05S05A3NR3; DBE1-0511F; TKE0505SP;

Parameters

Input voltage range:	4,5V ~ 5,5V
Output current:	0,2A
Output voltage range [V]:	5V
Efficiency:	69%
Power:	1W
Input voltage:	5V
Output voltage:	5V

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: NKE0505SC RoHS Case style: Rys.AM1SxxxxS Datasheet

In stock:

25 pcs.

Quantity of pcs.	1+	3+	10+	40+	120+
Net price (EUR)	6,1047	5,6275	5,3360	5,1597	5,0869

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: NKE0505SC Case style: Rys.AM1SxxxxS

External warehouse:

1120 pcs.

Quantity of pcs.	40+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	5,0869

Add to comparison tool Add inquiry (RFQ)

Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Input voltage range:	4,5V ~ 5,5V
Output current:	0,2A
Output voltage range [V]:	5V
Efficiency:	69%
Power:	1W
Input voltage:	5V
Output voltage:	5V
Insulation breakdown voltage:	3000V
