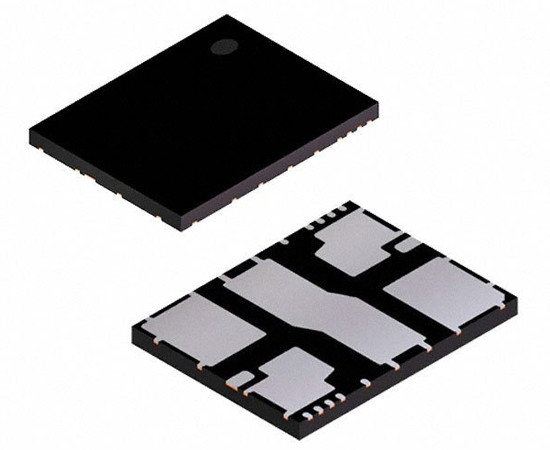

PWD13F60

Symbol Micros: UIPWD13f60

125500

UIPWD13f60

Contractor Symbol:

Case : VFQFPN(10x13)

Datasheet

Add to favourites

Full Bridge w/ Integrated Gate Driver; 32A Peak; 3,3V~15V; -40°C ~ 125°C;

Parameters

Supply voltage range:	3,3V ~ 15V
Case:	VFQFPN(10x13)
Current:	32A
Manufacturer:	STMicroelectronics
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	2

All parameters

Manufacturer:: ST Manufacturer part number: PWD13F60 RoHS Case style: VFQFPN(10x13) Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	6,6045	5,2988	4,9936	4,6814	4,4921

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

Manufacturer:: ST Manufacturer part number: PWD13F60 Case style: VFQFPN(10x13)

External warehouse:

136 pcs.

Quantity of pcs.	136+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	6,6115

Add to comparison tool Add inquiry (RFQ)

Packaging:
136

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Supply voltage range:	3,3V ~ 15V
Case:	VFQFPN(10x13)
Current:	32A
Manufacturer:	STMicroelectronics
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	2
