SCT2026CSOG STARCHIPS
Symbol Micros:
UISCT2026csog

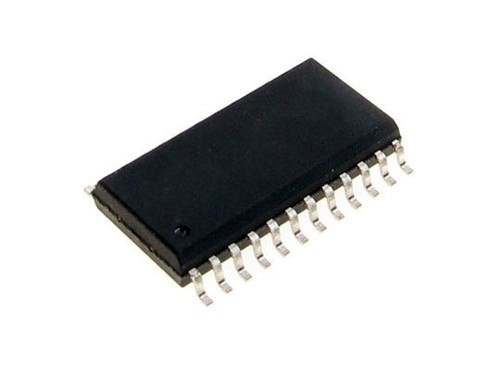

Case : SOP24
LED Display Driver, 16 channels, 5÷90mA 4.5÷5.5V
Parameters
| Input current: | 11mA |
| Manufacturer: | Starchips |
| Operating temperature (range): | -40°C ~ 85°C |
| Output current [A]: | 90mA |
| Supply voltage: | 4V ~ 5,5V |
| Type: | LED driver |
| Input current: | 11mA |
| Manufacturer: | Starchips |
| Operating temperature (range): | -40°C ~ 85°C |
| Output current [A]: | 90mA |
| Supply voltage: | 4V ~ 5,5V |
| Type: | LED driver |
Detailed description
StarChips LED drivers from the SCT20xx series offer from 3 to 16 outputs, enabling constant current regulation.
These ICs are equipped with a startup reset and thermal protection.
Their characteristic feature is high stability in terms of temperature, supply voltage, and load, as well as the ability to bridge for higher current efficiency.
Applications:
- LED lighting
- LED boards and advertisements
- street signaling
- building signage
- variable content signs
Package: SOP24
Number of channels: 16
Maximum output current: 5-90mA
Maximum output voltage: 17V
Supply voltage: 4.5-5.5V
Serial control: yes
Min. PWM time: 120ns
Equivalents
Item available on request
Manufacturer::
MACROBLOK
Manufacturer part number:
MBI5026GD-A RoHS
Case style:

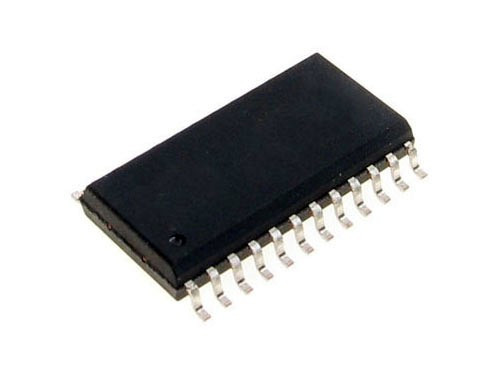

SOP24t/r
In stock
100 pcs.
| Quantity of pcs. | 1+ | 5+ | 20+ | 100+ | 300+ |
| Net price (EUR) | 1,6489 | 1,2228 | 1,0699 | 0,9935 | 0,9704 |
