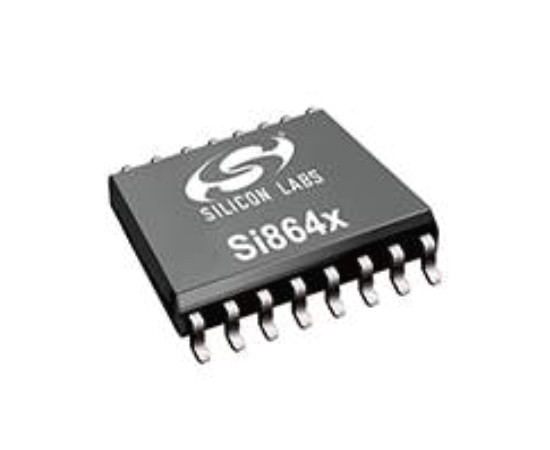

SI8642AB-B-IS

Symbol Micros: UISI8642ab-b-is

120693

UISI8642ab-b-is

Contractor Symbol:

Case : SOIC16

Datasheet

Technical drawing Add to favourites

4-Ch 1/0 Digital Isolator, Vrms 2500, 1Mbps, 35ns, 5.5V, -40÷125°C SI8642AB-B-ISR

Parameters

Propagation time:	35ns
Case:	SOIC16
Nominal voltage:	2,5V ~ 5,5V
Channel configuration:	2/2
Manufacturer:	Silicon Labs
Speed:	1Mbps
Insulation breakdown voltage:	2500V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Propagation time:	35ns
Case:	SOIC16
Nominal voltage:	2,5V ~ 5,5V
Channel configuration:	2/2
Manufacturer:	Silicon Labs
Speed:	1Mbps
Insulation breakdown voltage:	2500V
Number of channels:	4
Operating temperature (range):	-40°C ~ 125°C
Polarisation:	Unilateral
