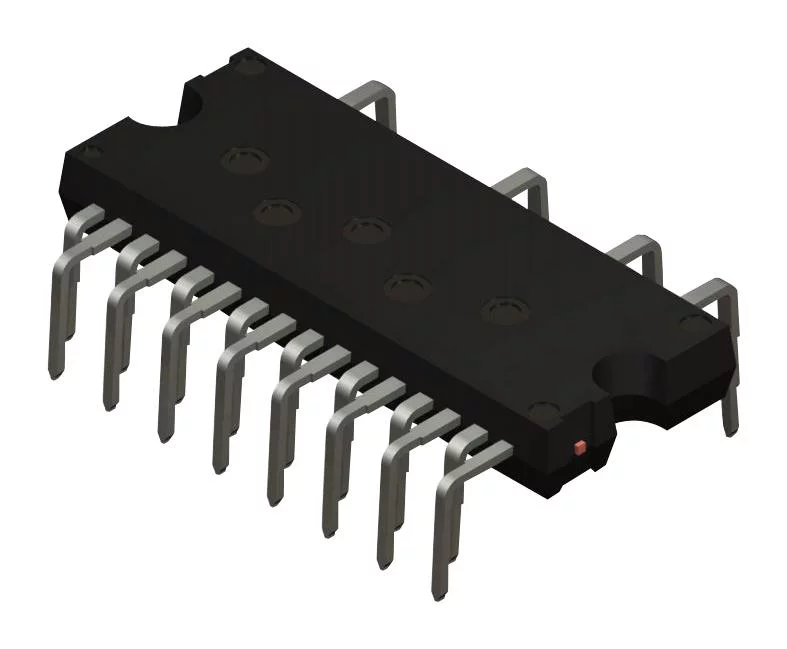

STIPQ5M60T-HZ

Symbol Micros: UISTIPQ5m60t-hz

313601

UISTIPQ5m60t-hz

Contractor Symbol:

Case : N2DIP26-Z

Datasheet

Technical drawing Add to favourites

IPM 3-Phase MOSFET Inverter; 5A; Vdss 600V; Vcc 13,5V~18V; Viso 1500Vrms; -40°C ~125°C;

Parameters

Supply voltage range:	13,5V~18V
Case:	N2DIP26-Z
Current:	5A
Manufacturer:	STMicroelectronics
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	6

All parameters

Manufacturer:: ST Manufacturer part number: STIPQ5M60T-HZ RoHS Case style: N2DIP26-Z Datasheet

In stock:

15 pcs.

Quantity of pcs.	1+	4+	15+	30+	90+
Net price (EUR)	7,8204	6,4153	5,7411	5,5330	5,3201

Add to comparison tool Add inquiry (RFQ)

Packaging:
15 Quantity (multiple: 1)

- +

Manufacturer:: ST Manufacturer part number: STIPQ5M60T-HZ Case style: N2DIP26-Z

External warehouse:

300 pcs.

Quantity of pcs.	30+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	5,8461

Add to comparison tool Add inquiry (RFQ)

Packaging:
15

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Supply voltage range:	13,5V~18V
Case:	N2DIP26-Z
Current:	5A
Manufacturer:	STMicroelectronics
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	6
