TCA9535RTWR

Symbol Micros: UITCA9535rtw

192734

UITCA9535rtw

Contractor Symbol:

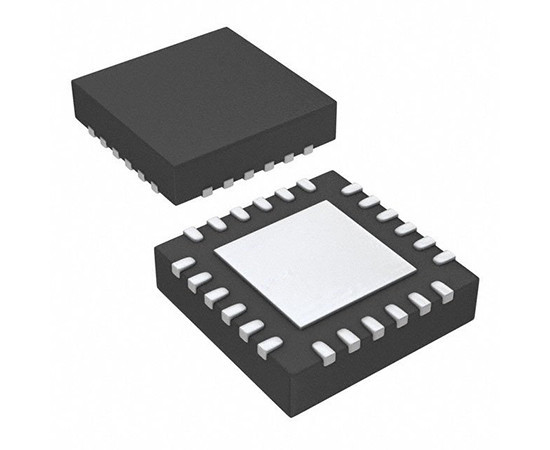

Case : WQFN24(4x4)

Datasheet

Technical drawing Add to favourites

16-bit I/O Expander w/ Interrupt; I2C/SMBus; Address: 0100 xxx; 400kHz; 1,65V~5,5V; -40°C ~ 85°C;

Parameters

Case:	WQFN24(4x4)
Supply voltage range:	1,65V~5,5V
Manufacturer:	Texas Instruments
Clock frequency:	400kHz
Interface:	I2C; SMBus
Number of I/O:	16
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: TCA9535RTWR RoHS Case style: WQFN24 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,5536	1,2397	1,0609	0,9532	0,9143

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Case:	WQFN24(4x4)
Supply voltage range:	1,65V~5,5V
Manufacturer:	Texas Instruments
Clock frequency:	400kHz
Interface:	I2C; SMBus
Number of I/O:	16
Operating temperature (range):	-40°C ~ 85°C
Type of output:	Push-Pull
