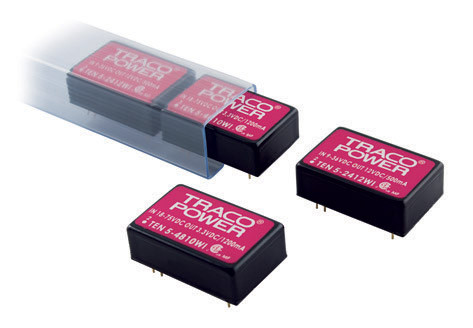

TEN 5-4822WI Traco Power

Symbol Micros: UITEN5-4822WI

264581

UITEN5-4822WI

Contractor Symbol:

Case : Rys.TEN5-WI

Datasheet

Technical drawing Add to favourites

Module DC-DC Converter; Isolated; Dual Output; 6W; 250mA; +/-12V; 1,5kV; 18V~75V; -40°C~85°C; EFF 83%; TEN5-4822WI;

Parameters

Output current [A]:	0,25A
Efficiency:	83%
Input voltage range:	18V ~ 75V
Output voltage range [V]:	+/-12V
Power:	6,0W
Output voltage [V]:	12V
Input voltage:	48V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Output current [A]:	0,25A
Efficiency:	83%
Input voltage range:	18V ~ 75V
Output voltage range [V]:	+/-12V
Power:	6,0W
Output voltage [V]:	12V
Input voltage:	48V
Output current 1:	250mA
Symetric output votage:	+/-12V
