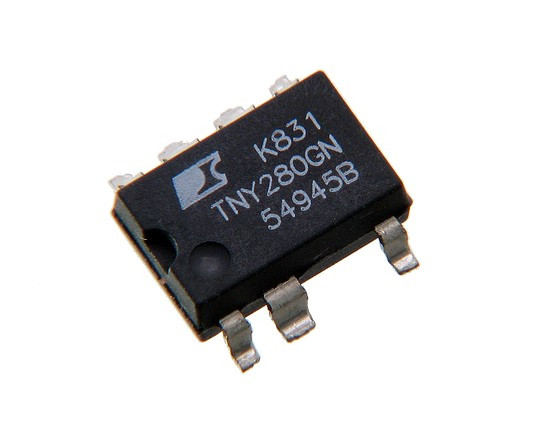

TNY280GN

Symbol Micros: UITNY280g

36092

UITNY280g

Contractor Symbol:

Case : PDIP08Csmd

Datasheet

Technical drawing Add to favourites

Low Power Off-line Switcher / TinySwitch-III family, 20/36.5W (230 VAC +/-15%)

Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	Switching regulator
Input voltage range:	85V ~ 265V
Mounting:	SMD
Case:	PDIP08Csmd
Dimensions:	9.32x6.10x3.18mm
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Power Integrations Manufacturer part number: TNY280GN-TL RoHS Case style: PDIP08Csmd Datasheet

In stock:

40 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9502	1,5559	1,3330	1,1968	1,1476

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	Switching regulator
Input voltage range:	85V ~ 265V
Mounting:	SMD
Case:	PDIP08Csmd
Dimensions:	9.32x6.10x3.18mm
Operating temperature (range):	-40°C ~ 150°C
