TPS2117DRLR

Symbol Micros: UITPS2117DRLR

501394

UITPS2117DRLR

Contractor Symbol:

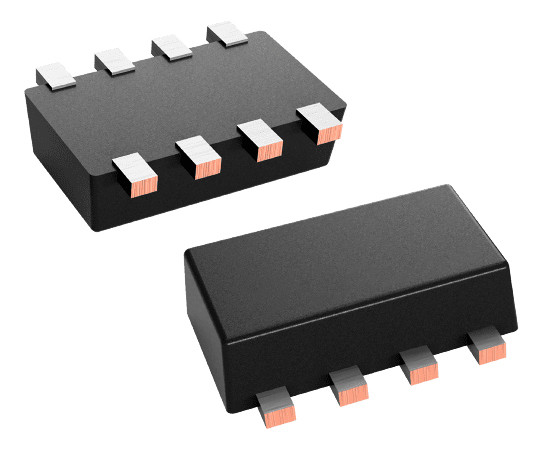

Case : SOT583

Datasheet

Technical drawing Add to favourites

Power Switch/Driver 2:1 N-Channel 4A SOT-583

Parameters

Drain resistance (Rds on):	0,02 Ohm
Input voltage range:	1,6V~5,5V
Turn on time:	1300us
Manufacturer:	Texas Instruments
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Drain resistance (Rds on):	0,02 Ohm
Input voltage range:	1,6V~5,5V
Turn on time:	1300us
Manufacturer:	Texas Instruments
Operating temperature (range):	-40°C ~ 125°C
