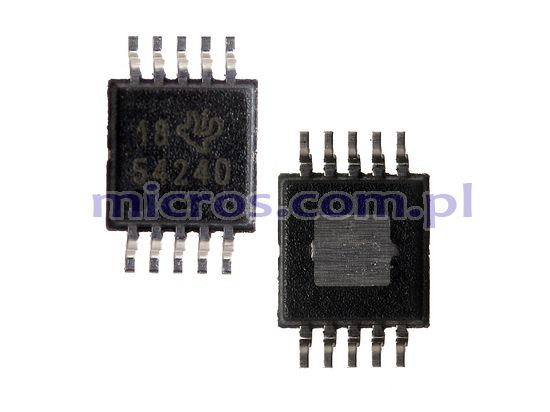

TPS54240DGQR

Symbol Micros: UITPS54240dgqr

64990

UITPS54240dgqr

Contractor Symbol:

Case : HMSOP10

Datasheet

Technical drawing Add to favourites

Step-Down Switching Regulator w/ Eco-Mode; 2,5A; Vin 3,5V~42V; Vout 0,8V~39V; 2,5MHz; -40°C~150°C; Substitute: TPS54240DGQ;

Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	DC/DC Converter
Input voltage range:	3,5V ~ 42V
Mounting:	SMD
Case:	HMSOP10
Dimensions:	3,1x3,1x1,1mm
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: TPS54240DGQR RoHS Case style: HMSOP10 Datasheet

In stock:

260 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,0119	1,5964	1,4438	1,3639	1,3405

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	DC/DC Converter
Input voltage range:	3,5V ~ 42V
Mounting:	SMD
Case:	HMSOP10
Dimensions:	3,1x3,1x1,1mm
Operating temperature (range):	-40°C ~ 150°C
