TPS54620RHLR

Symbol Micros: UITPS54620rhl

103754

UITPS54620rhl

Contractor Symbol:

Case : QFN-14S(3.5x3.5-0.5)

Datasheet

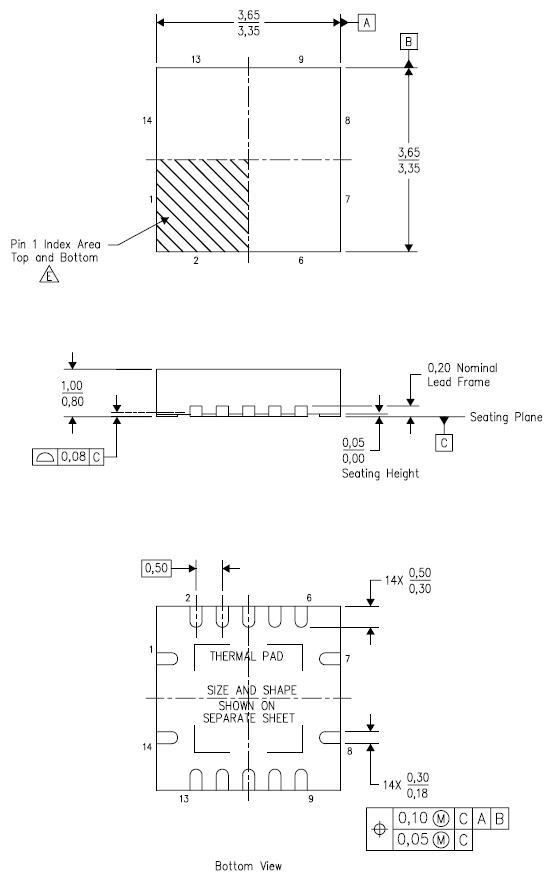

Technical drawing Add to favourites

Synchronous Step-Down Switching Regulator, 6A, Vin 4.5÷17V, Vout 0.8÷15V, 1.6MHz

Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 17V
Mounting:	SMD
Case:	QFN-14S(3.5x3.5-0.5)
Dimensions:	3.6x3.6x1.0
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: TPS54620RHLR RoHS Case style: QFN-14S(3.5x3.5-0.5) Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	40+	121+
Net price (EUR)	2,7208	2,3452	2,1222	1,9954	1,9438

Add to comparison tool Add inquiry (RFQ)

Packaging:
121 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 17V
Mounting:	SMD
Case:	QFN-14S(3.5x3.5-0.5)
Dimensions:	3.6x3.6x1.0
Operating temperature (range):	-40°C ~ 150°C
