TPS60150DRVT

Symbol Micros: UITPS60150drv

50399

UITPS60150drv

Contractor Symbol:

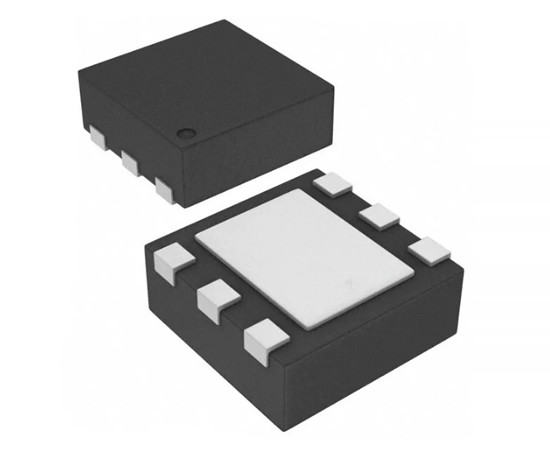

Case : SON06

Datasheet

Technical drawing Add to favourites

Step-Up Charge Pump Regulator, 0.14A, Vin 2.7÷5.5V, Vout 5V, 1.5MHz TPS60150DRVR

Parameters

Case:	SON06
Dimensions:	2,1x2,1x0,8mm
Input voltage range:	2,7~5,5V
Integrated circuit type:	Converter
Manufacturer:	Texas Instruments
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	SON06
Dimensions:	2,1x2,1x0,8mm
Input voltage range:	2,7~5,5V
Integrated circuit type:	Converter
Manufacturer:	Texas Instruments
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
