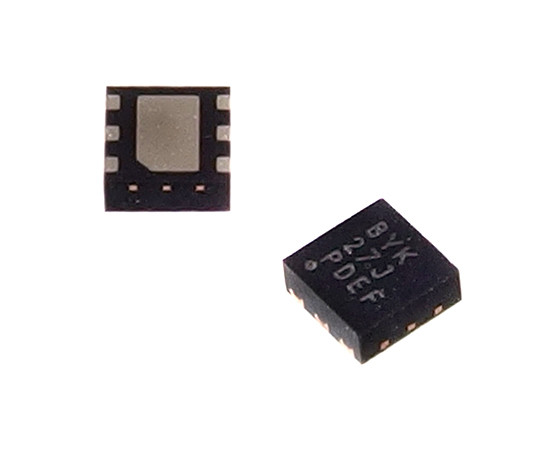

TPS62260DRV S-PWSON-N6

Symbol Micros: UITPS62260drv

85159

UITPS62260drv

Contractor Symbol:

Case : SON06

Datasheet

Technical drawing Add to favourites

Step-Down Switching Regulator, 0.6A, Vin 2÷6V, Vout 0.6÷6V, 2.25MHz

Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	2~6V
Mounting:	SMD
Case:	SON08
Dimensions:	2,1x2,1x0,8mm
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	2~6V
Mounting:	SMD
Case:	SON08
Dimensions:	2,1x2,1x0,8mm
Operating temperature (range):	-40°C ~ 85°C
