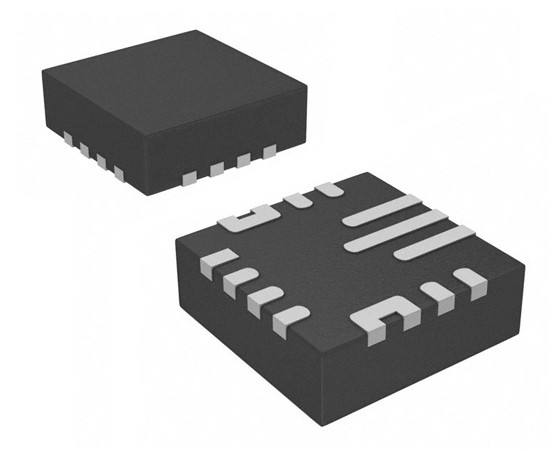

TPS630702RNMR Texas Instruments

Symbol Micros: UITPS630702rnmr

275438

UITPS630702rnmr

Contractor Symbol:

Case : VFQFN15

Datasheet

Add to favourites

Switching Voltage Regulators; Buck-Boost Converter; 2A; Vin 2V~16V; Vout 2,5V~9V; 2,4MHz; Single Out; -40°C~125°C; Substitute: TPS630702RNMT;

Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	2V ~ 16V
Mounting:	SMD
Case:	VFQFN15
Dimensions:	2,6x3,1x1mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: TPS630702RNMR RoHS Case style: VFQFN15 Datasheet

In stock:

18 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,2851	1,9161	1,7032	1,5731	1,5234

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	2V ~ 16V
Mounting:	SMD
Case:	VFQFN15
Dimensions:	2,6x3,1x1mm
Operating temperature (range):	-40°C ~ 125°C
