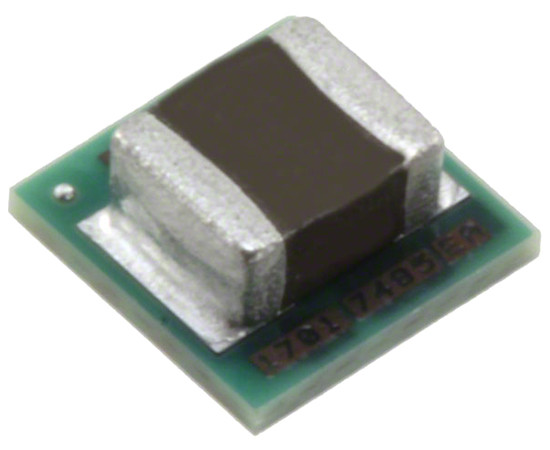

TPS82130SILR

Symbol Micros: UITPS82130silr

348360

UITPS82130silr

Contractor Symbol:

Case : uSIP08

Datasheet

Technical drawing Add to favourites

Step-Down Converter w/ Integrated Inductor, 3A, Vin 3÷17V, Vout 0.9÷6V, 2MHz TPS82130SILT

Parameters

Case:	uSIP08
Dimensions:	3x2.8x1.5mm
Input voltage range:	3V ~ 17V
Integrated circuit type:	DC/DC Converter
Manufacturer:	Texas Instruments
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	uSIP08
Dimensions:	3x2.8x1.5mm
Input voltage range:	3V ~ 17V
Integrated circuit type:	DC/DC Converter
Manufacturer:	Texas Instruments
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
