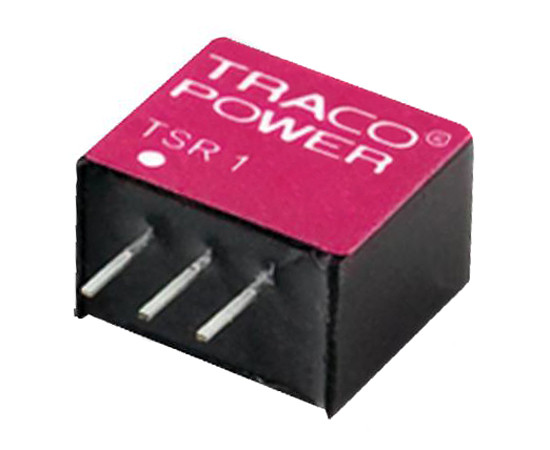

TSR 1-24120 TRACO POWER

Symbol Micros: UITSR1-24120

119967

UITSR1-24120

Contractor Symbol:

Case : Rys.TSR1-xxxx

Datasheet

Technical drawing Add to favourites

DC-DC Converter; Step-Down; Single Output; 500kHz; 1A; 12V; 15V~32V; -40°C~85°C; EFF 92%; TSR1-24120;

Parameters

Output current [A]:	1A
Input voltage range:	15V~32V
Output current 1:	1000mA
Input voltage:	23,5V
Output voltage range [V]:	12V
Efficiency:	92%
Output voltage [V]:	12V

All parameters

Manufacturer:: TRACO POWER Manufacturer part number: TSR 1-24120 Case style: Rys.TSR1-xxxx

External warehouse:

1591 pcs.

Quantity of pcs.	1+ (Please wait for the order confirmation)
Net price (EUR)	4,9771

Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Output current [A]:	1A
Input voltage range:	15V~32V
Output current 1:	1000mA
Input voltage:	23,5V
Output voltage range [V]:	12V
Efficiency:	92%
Output voltage [V]:	12V
Secondary voltage 1:	12V
