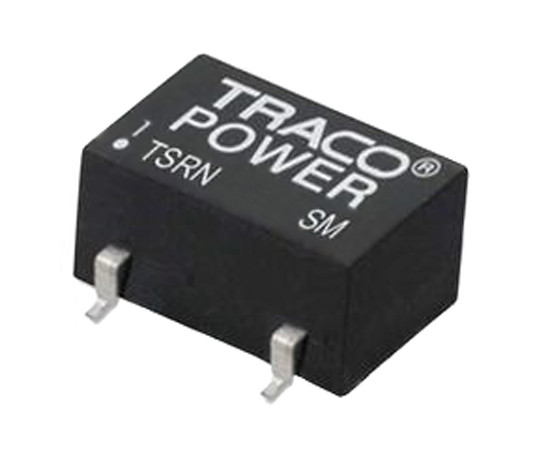

TSRN 1-2433SM

Symbol Micros: UITSRN1-2433SM

120022

UITSRN1-2433SM

Contractor Symbol:

Case : Rys.TSRNxxxxSM

Datasheet

Technical drawing Add to favourites

DC-DC Converter; Switching Regulator; Dual Output; 300kHz; 1A; +/-3,3V; 4,6V~42V; -40°C~85°C; EFF 80%;

Parameters

Output current [A]:	1A
Input voltage range:	4,6V~42V
Output current 1:	1000mA
Input voltage:	23,3V
Output voltage range [V]:	3,3V
Efficiency:	80%
Output voltage [V]:	3,3V

All parameters

Manufacturer:: TRACO POWER Manufacturer part number: TSRN 1-2433SM RoHS Case style: Rys.TSRNxxxxSM Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	9,7687	9,3820	9,1042	8,8518	8,7221

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Output current [A]:	1A
Input voltage range:	4,6V~42V
Output current 1:	1000mA
Input voltage:	23,3V
Output voltage range [V]:	3,3V
Efficiency:	80%
Output voltage [V]:	3,3V
Secondary voltage 1:	3,3V
Output current symetric [mA]:	1000mA
Secondary voltage 2:	-3,3V
Symetric output votage:	3,3V
