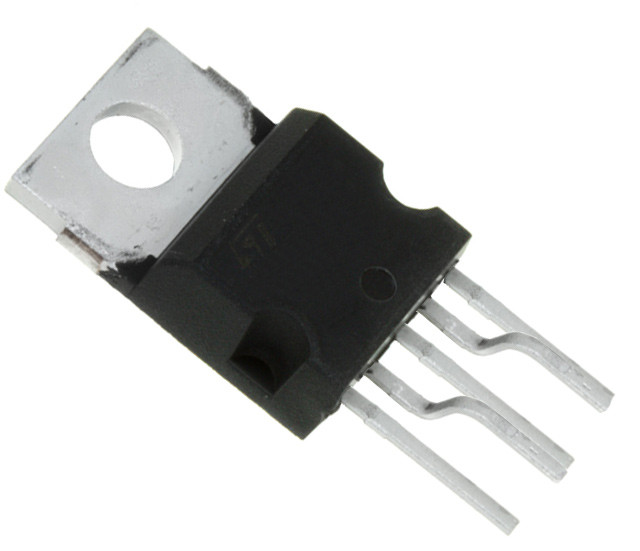

VIPer50A-22-E

Symbol Micros: UIVIPer50a-22-e

45158

UIVIPer50a-22-e

Contractor Symbol:

Case : PENTAWATT-HV-022Y

Datasheet

Add to favourites

SMPS Primary I.C.: PWM Controller + HV Power MOSFET 1.5A 700V 5.7Ω

Parameters

Case:	PENTAWATT-HV-022Y
Dimensions:	15,8x10,4x4,8mm
Input voltage range:	0~15V
Integrated circuit type:	Switching regulator
Manufacturer:	STMicroelectronics
Mounting:	THT
Operating temperature (range):	-40°C ~ 150°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	PENTAWATT-HV-022Y
Dimensions:	15,8x10,4x4,8mm
Input voltage range:	0~15V
Integrated circuit type:	Switching regulator
Manufacturer:	STMicroelectronics
Mounting:	THT
Operating temperature (range):	-40°C ~ 150°C
