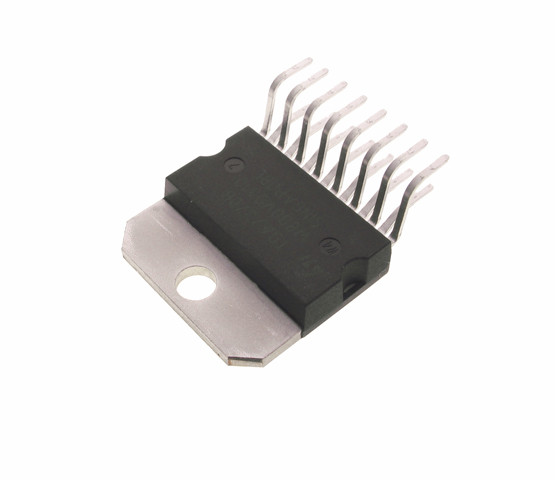

LMD18245T

Symbol Micros: ULLMD18245t

9625

ULLMD18245t

Contractor Symbol:

Case : SIP15HS

Datasheet

Technical drawing Add to favourites

Full-Bridge Motor Driver, 6A Peak, 12÷55V, -40÷125°C LMD18245T/NOPB

Parameters

Supply voltage range:	12V ~ 55V
Case:	SIP15HS
Current:	3A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: LMD18245T/NOPB Case style: SIP15HS

External warehouse:

249 pcs.

Quantity of pcs.	1+ (Please wait for the order confirmation)
Net price (EUR)	13,7425

Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Supply voltage range:	12V ~ 55V
Case:	SIP15HS
Current:	3A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 150°C
