MPX5010DP

Symbol Micros: UPMPX5010dp
Contractor Symbol:
Case : CASE867C-05

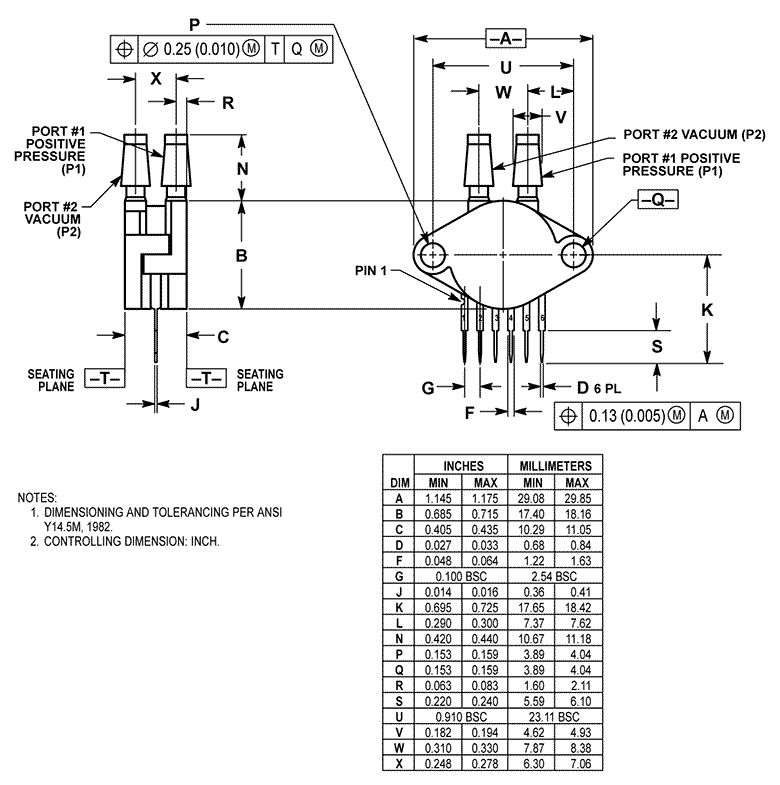

Technical drawing Add to favourites
Pressure Sensor (Differential), 0÷10kPa, Vout 0.2÷4.7V, 4.75÷5.25V, -40÷125°C
Parameters
Case: CASE867C-05
Supply voltage range: 4,75~5,25V
Working temperature range: -40 ~ 125°C
Manufacturer: FREESCALE
Integrated circuit type: Pressure sensor
Mounting: THT


Item available on request
Case: CASE867C-05
Supply voltage range: 4,75~5,25V
Working temperature range: -40 ~ 125°C
Manufacturer: FREESCALE
Integrated circuit type: Pressure sensor
Mounting: THT
Detailed description

Manufacturer: Freescale Semiconductor Category: pressure sensor Series: MPX5010 Pressure Type: Differential Measuring Range: 0 ~ 10kPa Supply Voltage: 4.75V ~ 5.25V Sensitivity: 450mV/mm Supply Current: 5 ~ 10mA Full Scale Span: 4.5V Output: 0.2 V ~ 4.7 V Response Time (10% to 90%): 1.0ms Operating Temperature: -40°C ~ 125°C Package/Case: 6-SIP Module
