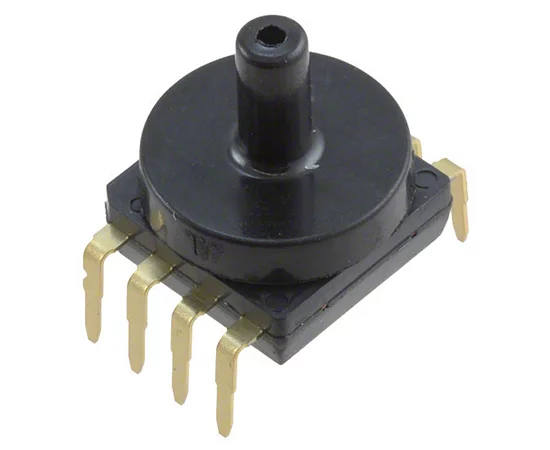

MPXV5010GC7U Freescale
Symbol Micros:
UPMPXV5010gc7u
Case : CASE482C-03
Pressure Sensor (Gauge), 0÷10kPa, Vout 0.2÷4.7V, 4.75÷5.25V, -40÷125°C
Parameters
Case: | CASE482C-03 |
Supply voltage range: | 4,75~5,25V |
Working temperature range: | -40÷125°C |
Manufacturer: | FREESCALE |
Integrated circuit type: | Pressure sensor |
Mounting: | THT |
Case: | CASE482C-03 |
Supply voltage range: | 4,75~5,25V |
Working temperature range: | -40÷125°C |
Manufacturer: | FREESCALE |
Integrated circuit type: | Pressure sensor |
Mounting: | THT |
Detailed description
Manufacturer: Freescale Semiconductor
Category: pressure sensor
Series: MPXV5010
Pressure Type: Gauge
Measuring Range: 0 ~ 10kPa
Supply Voltage: 4.75V ~ 5.25V
Sensitivity: 450mV/mm
Supply Current: 5 ~ 10mA
Full Scale Span: 4.5V
Output: 0.2V ~ 4.7V
Response Time (10% to 90%): 1.0ms
Operating Temperature: -40°C ~ 125°C
Package/Case: 8-DIP
