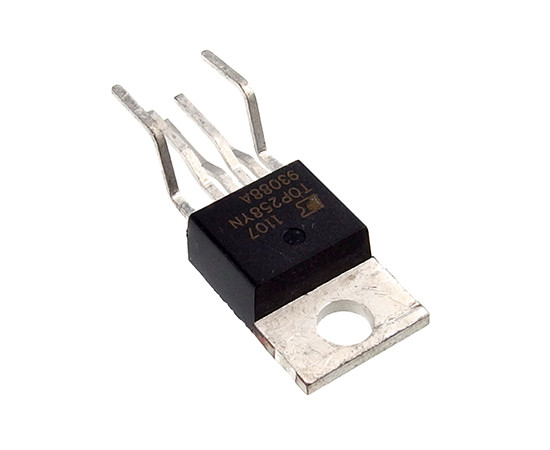

TOP258YN

Symbol Micros: UPTOP258yn

88487

UPTOP258yn

Contractor Symbol:

Case : TO220-7C

Datasheet

Add to favourites

EcoSmart Off-line Switcher / TopSwitch-HX family, 105/195W (230 VAC +/-15%)

Parameters

Case:	TO220/7C
Dimensions:	15.31x10.67x4.7mm
Input voltage range:	-300mV ~ 9V
Integrated circuit type:	AC/DC converter
Manufacturer:	Power Integrations
Mounting:	THT
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Power Integrations Manufacturer part number: TOP258YN RoHS Case style: TO220-7C Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,6149	2,2503	2,0333	1,9295	1,8672

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Case:	TO220/7C
Dimensions:	15.31x10.67x4.7mm
Input voltage range:	-300mV ~ 9V
Integrated circuit type:	AC/DC converter
Manufacturer:	Power Integrations
Mounting:	THT
Operating temperature (range):	-40°C ~ 150°C
