74HCT2G14GV

Symbol Micros: UT014hct2g gv

355526

UT014hct2g gv

Contractor Symbol:

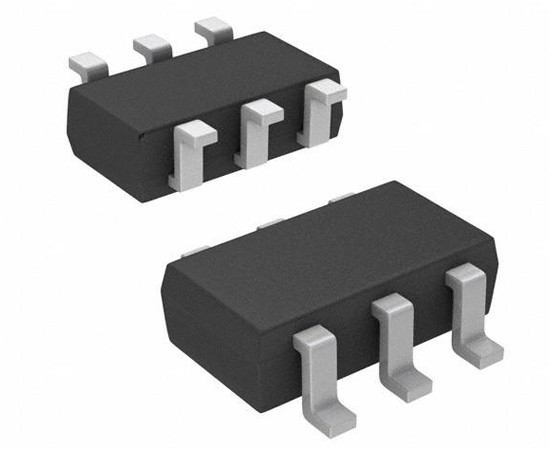

Case : TSOP06

Datasheet

Technical drawing Add to favourites

Inverter Schmitt Trigger 2-Element CMOS 74HCT2G14GV,125

Parameters

Manufacturer:	Nexperia
Type:	Inverter
Integrated circuit type:	Digital
Supply voltage range:	4,5V~5,5V
Operating temperature (range):	-40°C ~ 125°C
Mounting:	SMD
Case:	TSOP06

All parameters

Manufacturer:: NXP Manufacturer part number: 74HCT2G14GV,125 RoHS Case style: TSOP06 t/r Datasheet

In stock:

1725 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,2975	0,1646	0,1093	0,0914	0,0850

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Nexperia
Type:	Inverter
Integrated circuit type:	Digital
Supply voltage range:	4,5V~5,5V
Operating temperature (range):	-40°C ~ 125°C
Mounting:	SMD
Case:	TSOP06
