74LVC1G53DP

Symbol Micros: UT053lvc1g dp

311417

UT053lvc1g dp

Contractor Symbol:

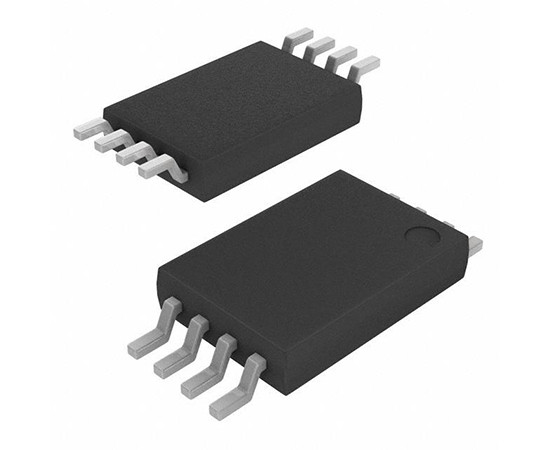

Case : TSSOP08

Datasheet

Technical drawing Add to favourites

Analog Multiplexer Single 2:1 8-Pin TSSOP 74LVC1G53DP,125 74LVC1G53DP.125

Parameters

Manufacturer:	NXP
Type:	Multiplexer/Demultiplexer
Integrated circuit type:	Analog
Supply voltage range:	1,65V ~ 5,5V
Operating temperature (range):	-40°C ~ 125°C
Mounting:	SMD
Case:	TSSOP08

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	NXP
Type:	Multiplexer/Demultiplexer
Integrated circuit type:	Analog
Supply voltage range:	1,65V ~ 5,5V
Operating temperature (range):	-40°C ~ 125°C
Mounting:	SMD
Case:	TSSOP08
