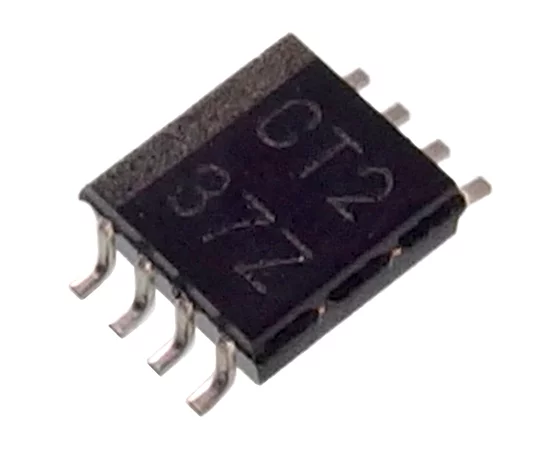

74LVC2G132 SSOP08

Symbol Micros: UT132lvc2g dc

83444

UT132lvc2g dc

Contractor Symbol:

Case : SSOP08

Datasheet

Add to favourites

Dual 2-Input NAND Gate w/ Schmitt Trigger Inputs SN74LVC2G132DCTR

Parameters

Manufacturer:	Texas Instruments
Type:	Logic gate
Integrated circuit type:	Digital
Supply voltage range:	1,65V~5,5V
Operating temperature (range):	-40°C ~ 125°C
Mounting:	SMD
Case:	SSOP08

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: SN74LVC2G132DCTR RoHS Case style: SSOP08t/r Datasheet

In stock:

499 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,7169	0,4545	0,3585	0,3257	0,3116

Add to comparison tool Add inquiry (RFQ)

Packaging:
939 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Texas Instruments
Type:	Logic gate
Integrated circuit type:	Digital
Supply voltage range:	1,65V~5,5V
Operating temperature (range):	-40°C ~ 125°C
Mounting:	SMD
Case:	SSOP08
