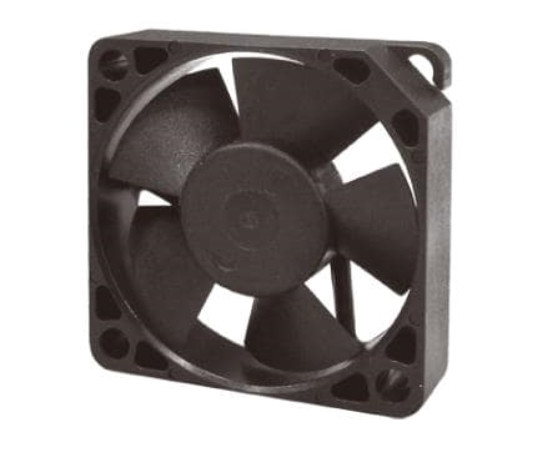

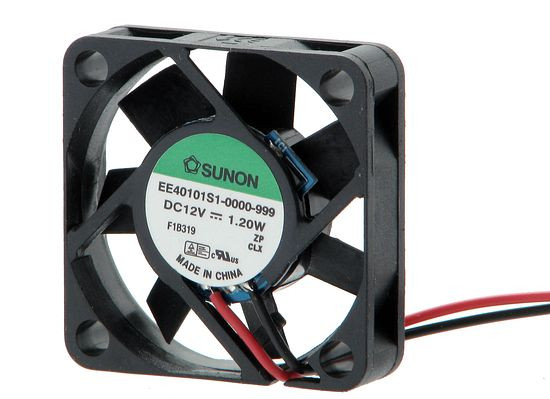

EE40101S1-1000U-999 SUNON fan DC
Symbol Micros:
W 4010v12s1-E
Case : EE40101S1-0000-999
Cooling Fan 12V DC; 40x40x10mm, slide bearing, 8,2CFM=13,86m3/h; 0,19A; 1,2W; 7300RPM; 28,2dBA; 15.6g 2 wires AWG28, legnth about 300mm
Parameters
| Efficiency [m3/h]: | 13,6m3/h |
| Noise level: | 28,2dBa |
| Current: | 190mA |
| Power consumption [W]: | 1,2W |
| Speed: | 7300RPM |
| Dimensions: | 40x40x10mm |
| Bearing type: | Sleeve bearing |
| Efficiency [m3/h]: | 13,6m3/h |
| Noise level: | 28,2dBa |
| Current: | 190mA |
| Power consumption [W]: | 1,2W |
| Speed: | 7300RPM |
| Dimensions: | 40x40x10mm |
| Bearing type: | Sleeve bearing |
| Manufacturer: | SUNON |
| Leads: | Wires |
| Voltage [DC]: | 12V |
Detailed description
Fan EE40101S1-999 40x40x10mm 12V
- Dimensions: 40 x 40 x 10 mm
- Rated voltage: 12VDC
- Current consumption: 0.09A
- Rotation speed: 7000 rpm
- Airflow: 8.0 CFM = 13.59m³/h
- Noise level: 32 dBA
- Sliding bearing
- 2 wires, approximately 300mm in length
- Weight: 16g
