Varistor JVR-14N 101K

Symbol Micros: WA 14N0100k

13363

WA 14N0100k

Contractor Symbol:

Case : Rys.WA14.0100

Datasheet

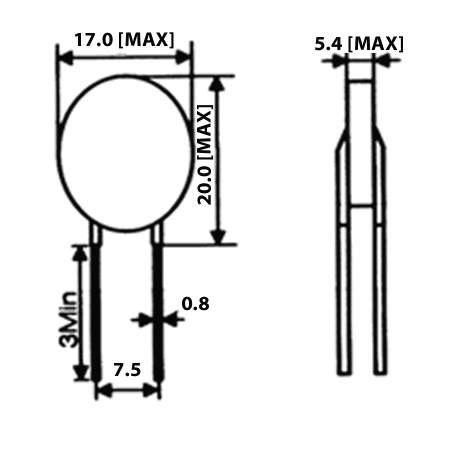

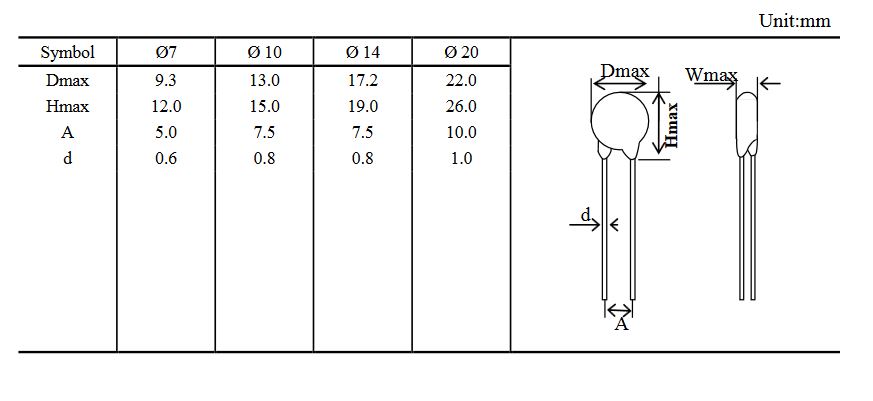

Technical drawing Technical drawing Add to favourites

Varistor voltage: 100V; operating voltage: 60VAC; 85VDC; power: 1W; tolerance: 10%; maximum energy: 1/100us - 28.0J

Parameters

Max. DC voltage:	85V
Varistor voltage:	100V
Max. AC voltage:	60V
Power:	0,6W
Manufacturer:	N/A
Mounting:	THT
Tolerance:	10%

All parameters

• Parameters

Max. DC voltage:	85V
Varistor voltage:	100V
Max. AC voltage:	60V
Power:	0,6W
Manufacturer:	N/A
Mounting:	THT
Tolerance:	10%
