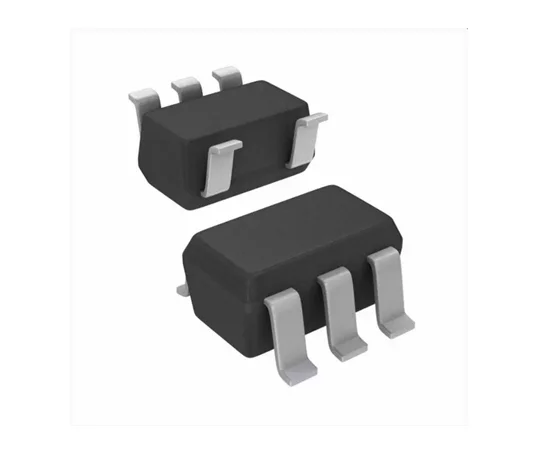

TL331IDBVR-TP SOT23-5 TECH PUBLIC

Symbol Micros: WK331idbv tl TEC

533705

WK331idbv tl TEC

Contractor Symbol:

Case : SOT23-5/t/r

Datasheet

Technical drawing Add to favourites

Single Voltage Comparator; tpd 1300ns; Voff 2mV; 2V~36V; +/-1÷+/-18V; -40~85°C; Odpowiednik: TL331IDBVR; TL331IDBVRG4; TL331IDBVRQ1; TL331IDBVT; TL331IDBVRE4; TL331IDBVTG4;

Parameters

Propagation time:	1300ns
Nominal voltage:	2V ~ 36V
Offset voltage:	2mV
Operating temperature (range):	-40°C ~ 85°C
Output type:	CMOS/TTL
Mounting:	SMD
Number of channels:	1

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Propagation time:	1300ns
Nominal voltage:	2V ~ 36V
Offset voltage:	2mV
Operating temperature (range):	-40°C ~ 85°C
Output type:	CMOS/TTL
Mounting:	SMD
Number of channels:	1
