MAX9943AUA+T

Symbol Micros: WOMAX9943aua

119480

WOMAX9943aua

Contractor Symbol:

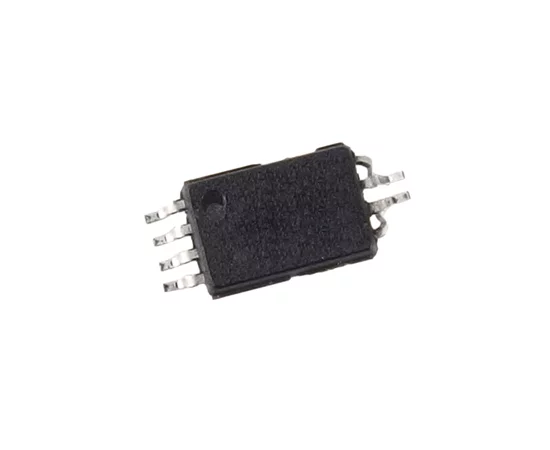

Case : TSSOP08 t/r

Datasheet

Add to favourites

Single R-R Out Op-Amp, GBW 2.4MHz, SR 0.35V/us, Voff 0.2mV, 6÷38V, +-3V~19V -40÷125°C

Parameters

Nominal voltage:	3V ~ 19V
Bandwidth:	2,4MHz
Vaoltage rise speed:	0,35V/us
Case:	TSSOP08
Manufacturer:	Maxim
Operating temperature (range):	-40°C ~ 125°C
Integrated circuit type:	Operational amplifier

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Nominal voltage:	3V ~ 19V
Bandwidth:	2,4MHz
Vaoltage rise speed:	0,35V/us
Case:	TSSOP08
Manufacturer:	Maxim
Operating temperature (range):	-40°C ~ 125°C
Integrated circuit type:	Operational amplifier
Mounting:	SMD
Number of channels:	1
