SA2813/S8B-1 WEIPU Industrial connector

Symbol Micros: Z SA2813/S8B-1

117492

Z SA2813/S8B-1

Contractor Symbol:

Case : Rys.Z SA2813/S8B-1

Datasheet

Technical drawing Add to favourites

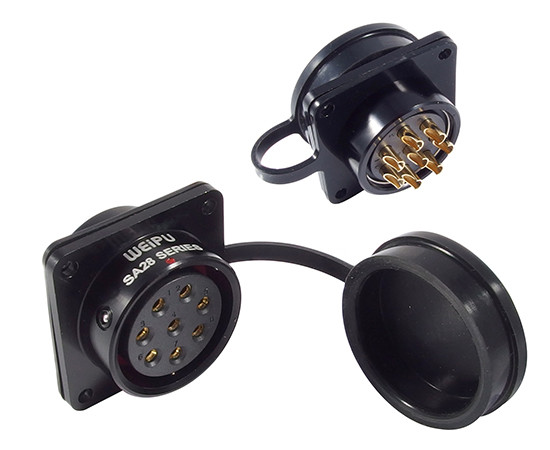

Female connector, circular, 8pin, black screwed, flange, IP67, 500V, 25A, mate with SA2810

Parameters

Series:	SA28
Number of pins:	8
Current:	25A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Female

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2813/S8B RoHS Case style: Rys.Z SA2813/S8B-1 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	5+	10+	30+
Net price (EUR)	8,1954	7,8158	7,4763	7,3042	7,1274

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2813/S8B RoHS Case style: Rys.Z SA2813/S8B-1 Datasheet

In stock:

9 pcs.

Quantity of pcs.	1+	5+	10+	20+	50+
Net price (EUR)	8,2355	7,5470	7,3820	7,2665	7,1604

Add to comparison tool Add inquiry (RFQ)

Packaging:
5/10 Quantity (multiple: 1)

- +

• Parameters

Series:	SA28
Number of pins:	8
Current:	25A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Female
