09 00 000 5013 HARTING

Symbol Micros: Z 09000005013

56607

Z 09000005013

Contractor Symbol:

Case : Rys.09000005013

Datasheet

Technical drawing Add to favourites

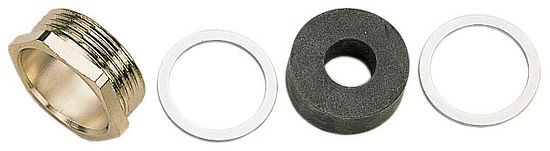

ACCES. METAL MULTIPLE CABLE SEAL

Product description

Parameters

Gland thread:	0mm
Thread:	PG11
Wrench size:	18mm
Colour:	Silver
IP rating:	IP65
Manufacturer:	HARTING

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Gland thread:	0mm
Thread:	PG11
Wrench size:	18mm
Colour:	Silver
IP rating:	IP65
Manufacturer:	HARTING

Detailed description

Micros Part Number	Z 09000005013
Manufacturer Part Number	09 00 000 5013
Accessory Type	Half gland
Wrench size	18
	with cutting seal
Cable diameter, min.	6,5 mm
Cable diameter, max.	12 mm
