09 11 000 6116 HARTING
Symbol Micros:
Z 09110006116
Case : Rys.09110006116

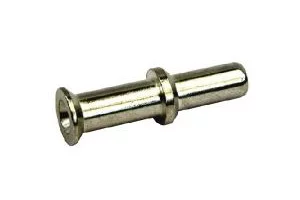

Male contact for Han Modular 100A module, TC100 16mm2
Parameters
| Series: | Han Modular |
| Connector type: | HAN |
| Connector: | Contact |
| Mounting: | Crimped |
| Type of connector: | Male |
| Series: | Han Modular |
| Connector type: | HAN |
| Connector: | Contact |
| Mounting: | Crimped |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09110006116 |
Manufacturer Part Number | 09 11 000 6116 |
Crimp die | Indicator 8 |
For stranded wire acc. to | IEC 60228, class 5 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
Pressing force requirement | 130 kN |
Type of contact | Crimp contact |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Contact resistance | <= 0,3 Om |
Rated current | 100 A |
Wire cross section | 16 mm2 |
Wire gauge AWG | AWG 4 |
Stripping length | 19 mm |
