09 12 003 3011 HARTING
Symbol Micros:
Z 09120033011
Case : Rys.09120033011

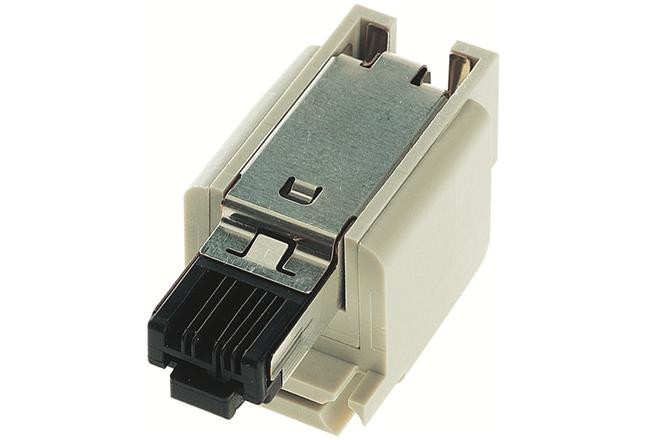

Male insert Han-Brid RJ45 C, size Han 3 A 2 poles, 10 A 25 V 0.8 kV 3
Detailed description
Micros Part Number | Z 09120033011 |
Manufacturer Part Number | 09 12 003 3011 |
Combination of contacts | 1 x RJ45 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
Terminal method, signal area | RJ45 |
Series | Han-Brid® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Additional contacts | + 2 electrical contacts 10 A |
Rated current | 10 A |
Rated voltage | 24 V |
Rated impulse voltage | 0,8 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
