09 12 008 3001 HARTING
Symbol Micros:
Z 09120083001
Case : Rys.09120083001

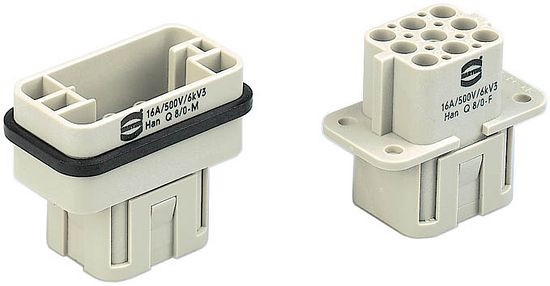

Han Q 8/0 Male Insert Crimp Term
Parameters
| Type of pin configuration: | 8 |
| Case: | Compact |
| Mounting: | Crimped |
| Type of connector: | Male |
| Series: | Han Q |
| Type of pin configuration: | 8 |
| Case: | Compact |
| Mounting: | Crimped |
| Type of connector: | Male |
| Series: | Han Q |
Detailed description
Micros Part Number | Z 09120083001 |
Manufacturer Part Number | 09 12 008 3001 |
Combination of contacts | 8/0 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | Han-Compact® |
Series | Han® Q |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Hint | Please order crimp contacts separately. |
Number of contacts (power) | 6 |
Rated current | 25 A |
Rated current | 16 A |
Rated voltage | 500 V |
Rated impulse voltage | 6 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 8 |
Wire cross section, min. | 0,14 mm2 |
Wire cross section, max. | 4 mm2 |
