09 12 012 3001 HARTING

Micros part number: Z 09120123001
Package: Rys.09120123001

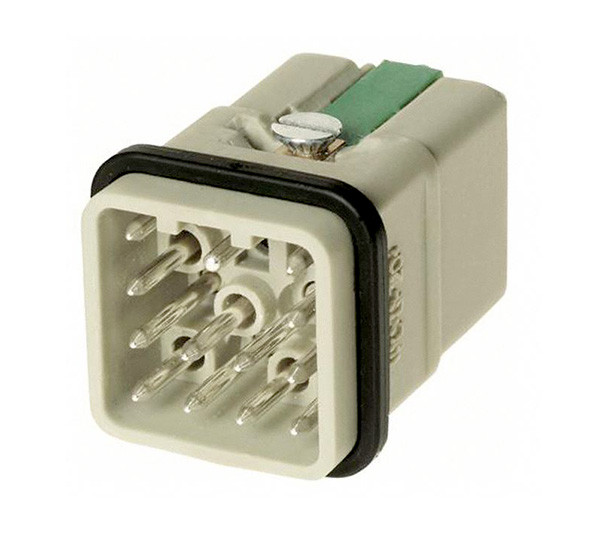

Insert Han Q 12/0 Male
Detailed description

Micros Part Number

Z 09120123001

Manufacturer Part Number

09 12 012 3001

Combination of contacts

12/0

Gender

male

Han-Quick Lock®

Yes

Mechanical working life - mating cycles

>= 500

RoHS conformity

Yes

Size

3 A

Terminal method PE

Han-Quick Lock® termination

Han-Quick Lock® slide

blue slide

Series

Han® Q

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Crimp termination/Han-Quick Lock®

Hint

Please order crimp contacts separately.

Rated current

10 A

Rated voltage

400 V

Rated impulse voltage

6 kV

Pollution degree

3

Core insulation diameter, max.

3,6 mm

Contact identification, min.

1

Contact identification, max.

12

Stripping length

10 mm

Wire cross section, min.

0.14 mm2

Wire cross section, max.

2.5 mm2
