09 14 000 0304 HARTING

Symbol Micros: Z 09140000304

53444

Z 09140000304

Contractor Symbol:

Case : Rys.09140000304

Technical drawing Add to favourites

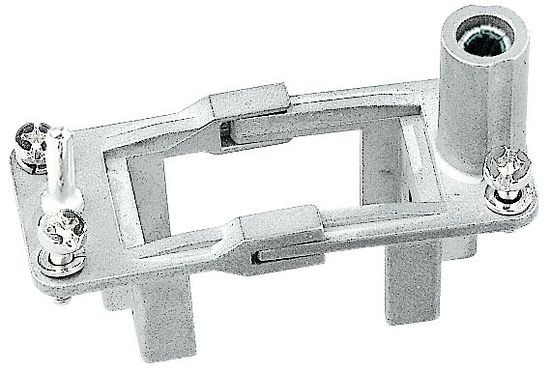

Frame for Han-Modular contact inserts, 1 module, size 10A

Product description

Parameters

Series:	Han Modular
Connector type:	N/A
Connector:	Module frame
Type of connector:	N/A
Mounting:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Series:	Han Modular
Connector type:	N/A
Connector:	Module frame
Type of connector:	N/A
Mounting:	N/A

Detailed description

Micros Part Number	Z 09140000304
Manufacturer Part Number	09 14 000 0304
Accessory Type	Frame
Number of modules	1
RoHS conformity	Yes
Further information	for 1 module in housing Han® 10 A
Size	10 A
Series	Han-Modular®
