09 14 001 2662 HARTING
Symbol Micros:
Z 09140012662
Case : Rys.09140012662

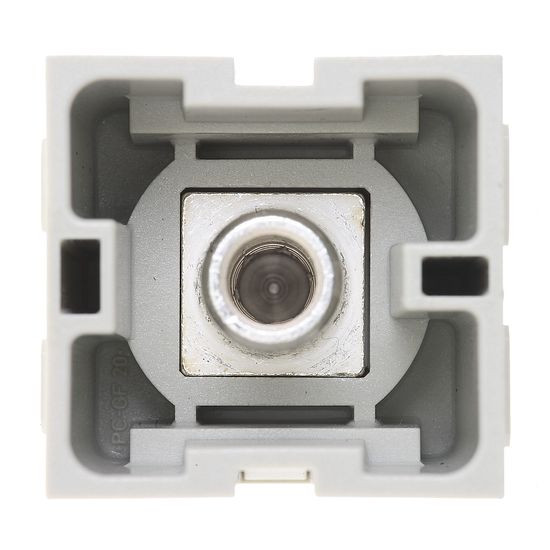

Module 200A for Han-Modular, 1 male contact, 40-70mm2 200 A 1000 V 8 kV 3, 1 axial screw contact
Parameters
| Series: | Han Modular 200A |
| Connector type: | Rectangular |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
| Series: | Han Modular 200A |
| Connector type: | Rectangular |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140012662 |
Manufacturer Part Number | 09 14 001 2662 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Axial screw terminal |
Number of contacts | 1 |
Contact resistance | ca. 0,2 mOhm |
Rated current | 200 A |
Rated voltage | 1.000 V |
Rated impulse voltage | 8 kV |
Pollution degree | 3 |
Contact identification, max. | 1 |
Wire cross section, min. | 40 mm2 |
Wire cross section, max. | 70 mm2 |
Wire gauge AWG, min. | AWG 2 |
Wire gauge AWG, max. | AWG 0 |
