09 14 002 2651 HARTING
Symbol Micros:
Z 09140022651
Case : Rys.09140022651

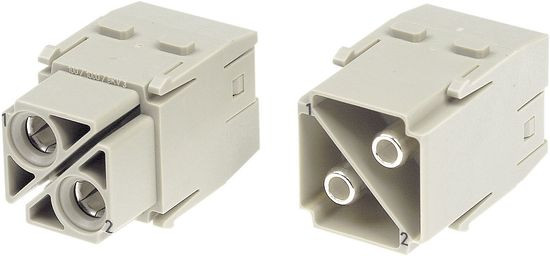

Module 100A for Han-Modular, 2 male contacts, 16-35mm2 100 A 1000 V 8 kV 3, 2 axial screw contacts
Parameters
| Series: | Han Modular 100A |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Screw clamp |
| Type of connector: | Male |
| Series: | Han Modular 100A |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Screw clamp |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140022651 |
Manufacturer Part Number | 09 14 002 2651 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Axial screw terminal |
Number of contacts | 2 |
Contact resistance | <= 0,3 mOhm |
Rated current | 100 A |
Rated voltage | 1.000 V |
Rated impulse voltage | 8 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 2 |
Wire cross section, min. | 16 mm2 |
Wire cross section, max. | 35 mm2 |
Wire gauge AWG, min. | AWG 5 |
Wire gauge AWG, max. | AWG 2 |
