09 14 002 3021 HARTING
Symbol Micros:
Z 09140023021
Case : Rys.09140023021

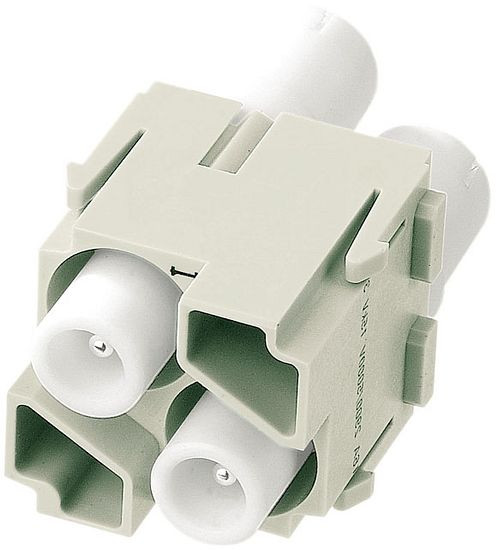

Han HV Module 16A for Han-Modular, 2 male contacts, 0.5-4mm2 16 A 2900/5000 V 15kV 3, 3 crimp contacts
Parameters
| Series: | Han Modular HV |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Screw clamp |
| Type of connector: | Male |
| Series: | Han Modular HV |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Screw clamp |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140023021 |
Manufacturer Part Number | 09 14 002 3021 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Number of contacts | 2 |
Hint | Please order crimp contacts separately. |
Rated current | 16 A |
Rated voltage conductor – ground | 2.900 V |
Rated voltage conductor – conductor | 5.000 V |
Rated impulse voltage | 15 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 2 |
