09 14 003 2702 HARTING
Symbol Micros:
Z 09140032702
Case : Rys.09140032702

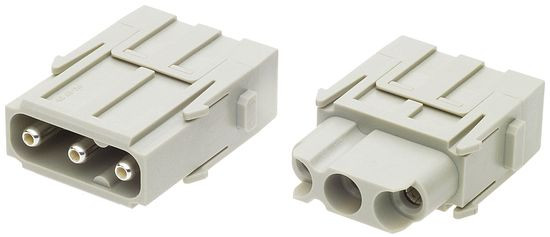

Module 40A for Han-Modular 3 female contacts 6-10mm2
Parameters
| Series: | Han Modular C |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Screw clamp |
| Type of connector: | Female |
| Series: | Han Modular C |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Screw clamp |
| Type of connector: | Female |
Detailed description
Micros Part Number | Z 09140032702 |
Manufacturer Part Number | 09 14 003 2702 |
Gender | female |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Axial screw terminal |
Number of contacts | 3 |
Contact resistance | <= 0,3 mOhm |
Rated current | 40 A |
Rated voltage | 690 V |
Rated impulse voltage | 8 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 3 |
Wire cross section, min. | 6 mm2 |
Wire cross section, max. | 10 mm2 |
Wire gauge AWG, min. | AWG 10 |
Wire gauge AWG, max. | AWG 8 |
