09 14 004 3041 HARTING
Symbol Micros:
Z 09140043041
Case : Rys.09140043041

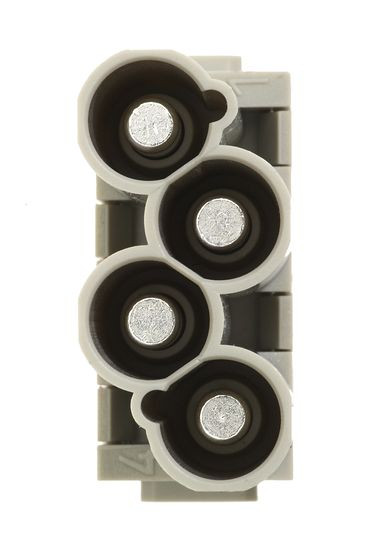

Han CC Protected module 40A for Han-Modular, 4 male contacts, 1.5-6mm2 40 A 830 V 8 kV 3, 3 crimp contacts
Parameters
| Series: | Han Modular CC Protected |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
| Series: | Han Modular CC Protected |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140043041 |
Manufacturer Part Number | 09 14 004 3041 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Number of contacts | 4 |
Hint | Please order crimp contacts separately. |
Rated current | 40 A |
Rated voltage | 830 V |
Rated impulse voltage | 8 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 4 |
