09 14 007 3001 HARTING

Symbol Micros: Z 09140073001
Contractor Symbol:
Case : Rys.09140073001
Technical drawing Add to favourites

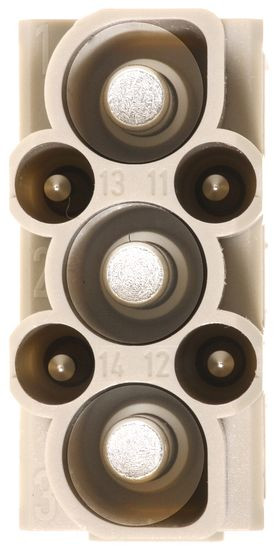

Han CD Module 40A for Han-Modular,3/ 4 male contacts, 1.5-6mm2 40 A 830 V 8 kV 3, 3 crimp contacts
Parameters
Series: Han Modular CD
Connector type: HAN
Connector: Module
Mounting: N/A
Type of connector: Male


Item available on request
Series: Han Modular CD
Connector type: HAN
Connector: Module
Mounting: N/A
Type of connector: Male
Detailed description



Micros Part Number

Z 09140073001

Manufacturer Part Number

09 14 007 3001

Combination of contacts

¾

Gender

male

Mechanical working life - mating cycles

>= 500

RoHS conformity

Yes

Series

Han-Modular®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Crimp terminal

Hint

Please order crimp contacts separately.

Rated current

40 A

Rated voltage

830 V

Rated impulse voltage

8 kV

Pollution degree

3

Rated current, pollution degree 3, signal area

10 A

Rated voltage, pollution degree 3, signal area

830 V

Rated impulse voltage, pollution degree 3, signal area

8 kV

Pollution degree 3, signal area

3

Core insulation diameter, max.

5 mm
