09 14 008 2633 HARTING
Symbol Micros:
Z 09140082633
Case : Rys.09140082633

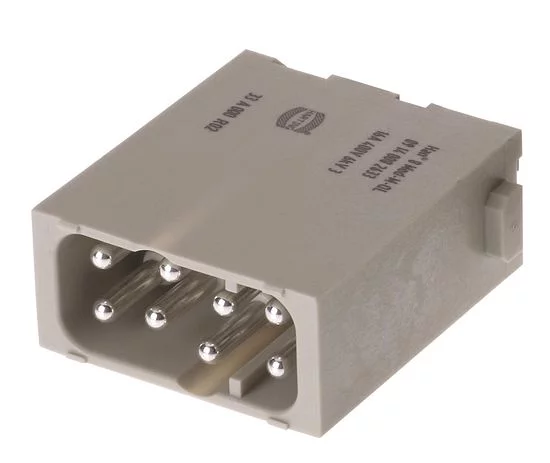

Han EE Module 16A for Han-Modular, 8 male contacts, 0.5-2.5mm2 16 A 400 V 6 kV 3, 8 Quick Lock contacts
Parameters
| Series: | Quick Lock |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Latch clamp |
| Type of connector: | Male |
| Series: | Quick Lock |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | Latch clamp |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140082633 |
Manufacturer Part Number | 09 14 008 2633 |
Gender | male |
Han-Quick Lock®: | Yes |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Han-Quick Lock® slide | blue slide |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Han-Quick Lock® termination |
Number of contacts | 8 |
Contact resistance | <= 1 mOhm |
Rated current | 16 A |
Rated voltage | 400 V |
Rated impulse voltage | 6 Kv |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 8 |
Wire cross section, min. | 0,5 mm2 |
Wire cross section, max. | 2,5 mm2 |
Wire gauge AWG, min. | AWG 20 |
Wire gauge AWG, max. | AWG 14 |
Core insulation diameter, max. | 3,6 mm |
