09 14 017 3001 HARTING
Symbol Micros:
Z 09140173001
Case : Rys.09140173001

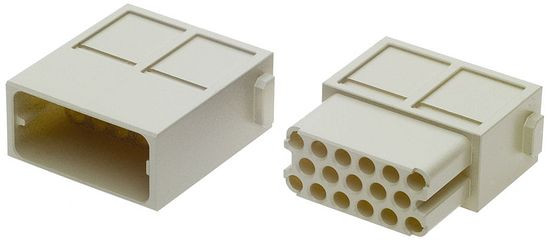

Han Modular 17 DDD Module male
Parameters
| Series: | Han Modular DDD |
| Connector: | Module |
| Connector type: | HAN |
| Mounting: | N/A |
| Type of connector: | Male |
| Series: | Han Modular DDD |
| Connector: | Module |
| Connector type: | HAN |
| Mounting: | N/A |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140173001 |
Manufacturer Part Number | 09 14 017 3001 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
Mating cycles with HMC contacts | >= 10,000 |
RoHS conformity | Yes |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Number of contacts | 17 |
Hint | Please order crimp contacts separately. |
Rated current | 10 A |
Rated voltage | 160 V |
Rated impulse voltage | 2,5 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 17 |
