09 14 020 3001 HARTING

Symbol Micros: Z 09140203001
Contractor Symbol:
Case : Rys.09140203001

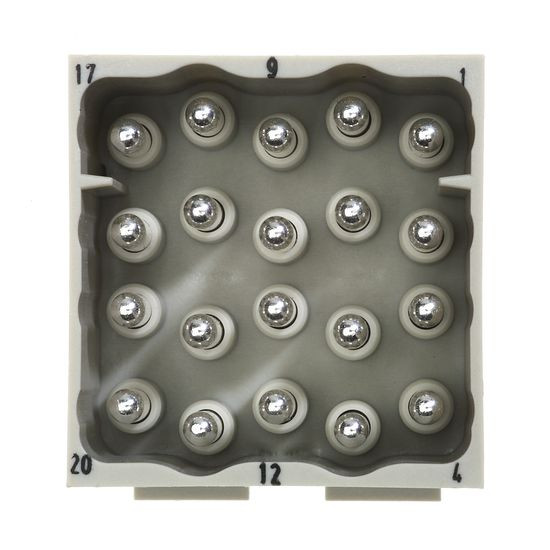

Male module Han-Modular EEE 20pin for crimp contacts
Parameters
Series: Han Modular EEE
Connector: Module
Connector type: HAN
Mounting: N/A
Type of connector: Male


Item available on request
Series: Han Modular EEE
Connector: Module
Connector type: HAN
Mounting: N/A
Type of connector: Male
Detailed description



Micros Part Number

Z 09140203001

Manufacturer Part Number

09 14 020 3001

Gender

male

Mechanical working life - mating cycles

>= 500

Mating cycles with HMC contacts

>= 10,000

RoHS conformity

Yes

Series

Han-Modular®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Crimp terminal

Number of contacts

20

Hint

Please order crimp contacts separately.

Rated current

16 A

Rated voltage

500 V

Rated impulse voltage

6 kV

Pollution degree

3

Contact identification, min.

1

Contact identification, max.

20
