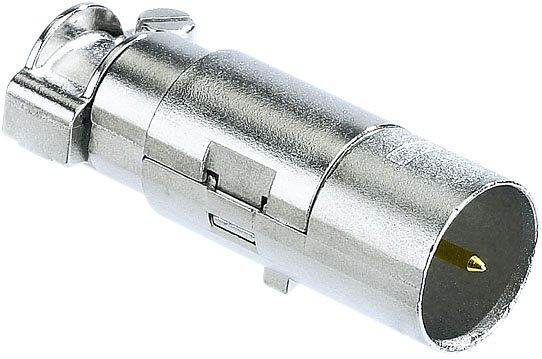

09 15 001 3013 HARTING
Symbol Micros:
Z 09150013013
Case : Rys.09150013013
Male contact housing for module male contacts
Parameters
| Case: | N/A |
| Locking system: | N/A |
| Series: | Han D Coax |
| Connector: | Contact |
| Connector type: | HDC |
| Case: | N/A |
| Locking system: | N/A |
| Series: | Han D Coax |
| Connector: | Contact |
| Connector type: | HDC |
Detailed description
Micros Part Number | Z 09150013013 |
Manufacturer Part Number | 09 15 001 3013 |
Gender | male |
RoHS conformity | Yes |
Type of contact | Coaxial contact |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 85 °C |
Hint | Please order crimp contacts separately. |
Contact info | 1 + shielding, for Han D® crimp contacts, 75 Ohm |
Rated current | 10 A |
Rated voltage | 50 V |
Rated impulse voltage | 0,8 kV |
Pollution degree | 3 |
