09181069622 HARTING

Symbol Micros: Z 09181069622

53508

Z 09181069622

Contractor Symbol:

Case : Rys.09181069622

Datasheet

Technical drawing Add to favourites

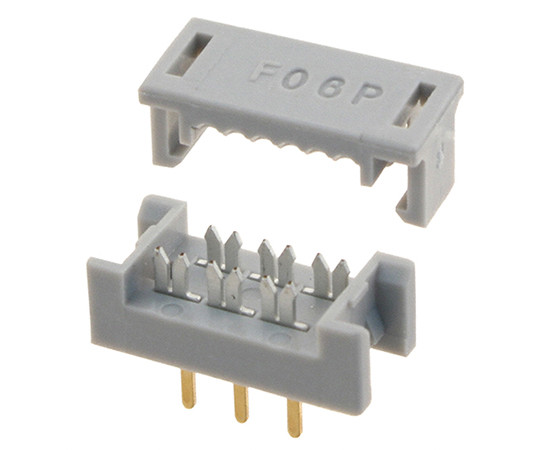

SEK series, 09181069622 Harting, 6 contacts, PCB IDC transition for flat cable, low-profile version, solder pins, h=5.5 mm PCB, 2 rows

Parameters

Number of pins:	6
Mounting:	Tape mounting (AWG28)
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	6
Mounting:	Tape mounting (AWG28)
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male
