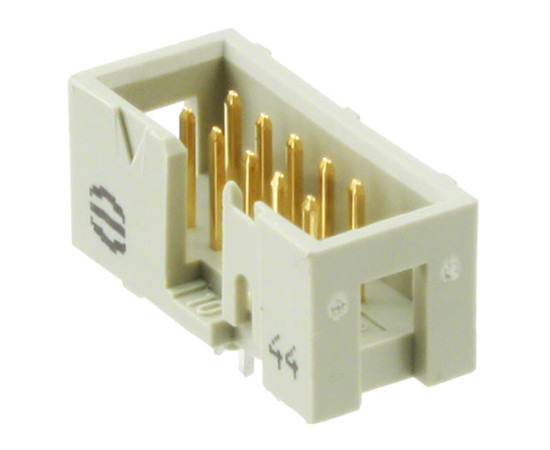

09185106324 HARTING IDC connector

Symbol Micros: Z 09185106324

102500

Z 09185106324

Contractor Symbol:

Case : Rys.09185106324

Datasheet

Add to favourites

10 contacts, IDC connector, p. 2.54mm Type of pin configuration: 2x5, type: straight 2.9 mm

Parameters

Number of pins:	10
Mounting:	For printing, straight
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: Harting Manufacturer part number: 09185106324 Case style: Rys.09185106324

External warehouse:

5629 pcs.

Quantity of pcs.	120+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,9115

Add to comparison tool Add inquiry (RFQ)

Packaging:
20

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	10
Mounting:	For printing, straight
Terminal pitch:	2,54mm
Type of connector:	Male
